Anti-Corrosion Powder Coated GI Pipe, Stainless Steel, Stay Open Ball Valve With ABS Push Plate, Acid, Alkali And Oil Resistant ABS Receptor Bowl
Twin Soft Flow Automiser Head With Aerators To Control Stream
Operated By Push Plate And Foot Paddle
Material : G.I
Water Inlet Connection : ½”Eye wash
Water Outlet Connection : 1 ¼”Tee
Supply Water Condition ,Supply Water:Drinking Water ,Operating Press:2 Kgf/cm² (30 PSI),Operating Temp:Ambient
Material : Pipe :GI,Fitting:GI,Flange:Cast Iron
Weight:7.590 Kg
Flow:10 LPM
Approval :IS :10592:1982

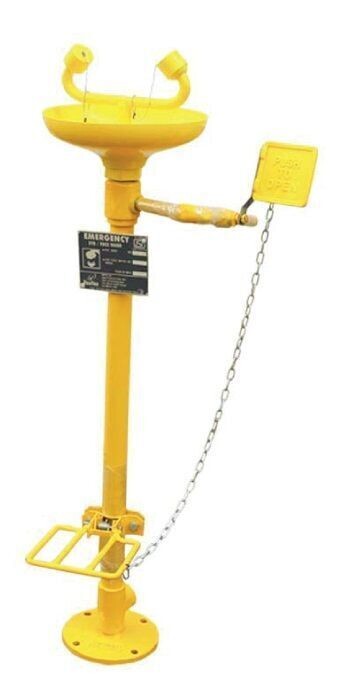

Emergency eye/face wash fountain operates independently by push lever and foot paddle.
Vaultex 4710 GI Emergency Eye/Face Wash-Hand & Foot Operated
Pipe:ISI marked GI pipe with powder coating for anti-corrosion.
Valve:SS stay open ball valve with yellow ABS push plate.
Bowl:Receptor bowl made of ABS and highly resistant to acid, alkali and oil among others.
Automiser heads:Twin soft flow automiser head which has aerators to control the stream straightness and diameter, thus reducing splash by aerating the stream.
It also controls to save water and reduce energy costs.
The twin flow has cover which protects from dust and opens with water pressure.
Activation:Push plate and foot paddle.
Water inlet and drain:1/2 inches BSP inlet and 1¼ inches BSP drain.
