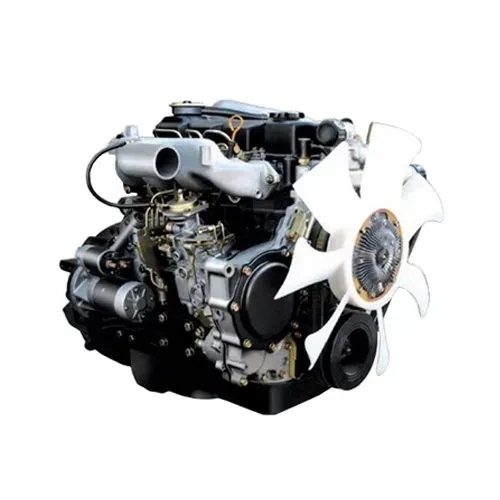

Lovol 1004-4 Engine

World-class high safety design, exquisite technology, stronger work capacity.
Long piston stroke, high intake efficiency, more continuous and stronger power output.
High torque, big torque at low speed, fully improved start and accelerating function.
Dedicated performance curves which is customized to satisfy different demands.
Imported high quality parts which are reliable and wearproof with high operating efficiency and effectively reduce maintenance costs.
Perfect service and spare parts support give customers one-stop, convenient and specialist service.

Model	1004-4
Type	4 cylinders in line, 4 stroke, water-cooling, dry cylinder liner
Air Intake	Natural aspiration
Bore * Stroke	100mm * 127mm
Displacement	3.99 L ( 239 in3 )
Compression Ratio	16.5 : 1
Ignition Order	1-3-4-2
Power Rating	47kw (64hp) 2200rpm / 53kw (72hp) 2400rpm
Peak Torque	260 N.m (192 lb.ft) 1400-1600rpm
Governor	Mechanical
Emission Level	Euro I, Tier I
Start Method	Electric
Noise	96 dB(A)
Overall Dimensions	711mm * 610mm * 767mm
Net Dry Weight	273kg
