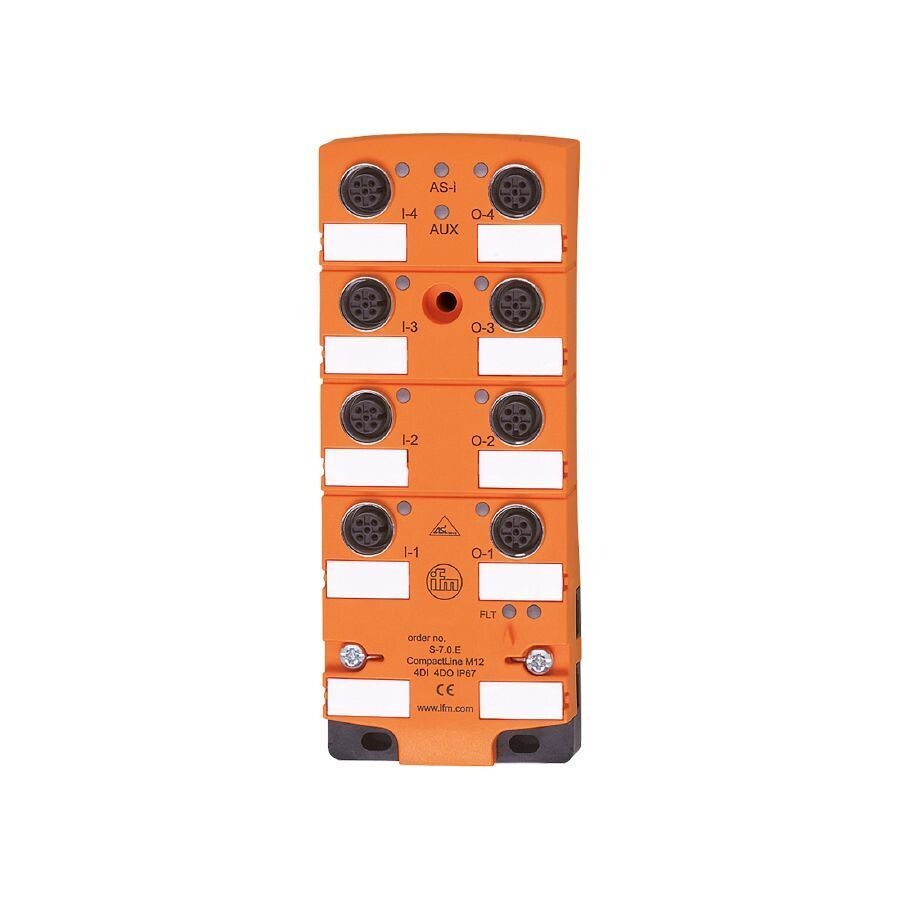

AS-Interface CompactLine module

• Easy to mount and wire
• High shock and vibration resistance thanks to full potting
• Clearly visible powerful LEDs for displaying operation, function and error
• High protection rating for the requirements of harsh industrial environments
• Robust M12 connectors for connecting sensors and actuators
• Tests / approvals

  EMC	EN 61000-6-2 EN 62026-2 EN 50581
  MTTF [years]	193
  UL approval	power supply Class 2

  AS-i classification

  AS-i version	2.11; 3.0
  AS-i addressing	IR addressing possible
  Extended addressing mode	no
  AS-i profile	S-7.0.E
  AS-i I/O configuration [hex]	7
  AS-i ID code [hex]	0.E
  AS-i certificate	46001
  Assignment of the data bits	data bit D0 D1 D2 D3 input 1 2 3 4 socket I-1 I-2 I-3 I-4 pin 2+4 2+4 2+4 2+4 Output 1 2 3 4 socket O-1 O-2 O-3 O-4 pin 4 4 4 4

  Mechanical data

  Weight [g]	376.5
  Type of mounting	AS-i flat cables directly connectable
  Dimensions [mm]	152 x 60 x 27
  Materials	PA; socket: brass nickel-plated; threaded inserts in the lower part: brass nickel-plated; O-ring: FKM; piercing contacts: CuSn6 nickel-plated and tin-plated

  Displays / operating elements

  Display	switching status LED, yellow I1...I4, O1...O4 operation LED, green AS-i, AUX errors LED, red

  Electrical connection

  Module connection	Flat cables

  Accessories

  Accessories (optional)	Stainless steel sleeve, for installation in case of high mechanical stress , E70402

  Remarks

  Remarks	Do not connect any of the following points to an external potential: I-, I+, I1, I2, I3, I4 The connections are electrically connected with the AS-i cable.
  Pack quantity	1 pcs.

  Electrical connection - Inputs

  	Connector: M12; coding: A

  Electrical connection - Outputs

  	Connector: M12; coding: A

  ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2412-02 — 25.07.2013 —
